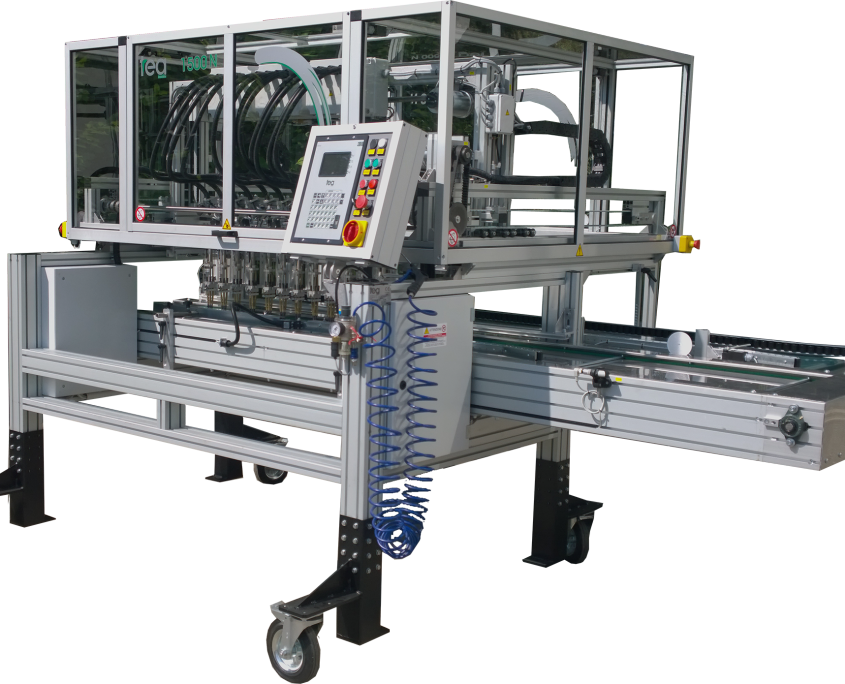

TEA 1500N and 2000N

Characterized by robustness and precision, the TEA 1500N and 2000N transplanters are ideal for growers that need to carry out large volumes of work. The bridge, that moves parallel to the direction of advancement of the trays, is mounted on two parallel guides, conferring the machine solidity and precision. The grippers are individually motorized and it is possible to pick up the plants from the side. If the pattern of the cells of the destination tray does not allow the use of all the grippers, the machine signals it and “parks” the excess grippers on the side. The machine parameters and the programs entered can be saved on a USB memory.

  • Datasheet download
  • Videogallery
  • 1500N Layout download
  • 2000N Layout download
  • Datasheet download
  • Videogallery
  • 1500N Layout download
  • 2000N Layout download

Characteristics TEA 1500NTEA 2000N
Machine dimensions (LxLxH)cm 220x320x220cm 226x420x220
Weightkg 700kg 600
PowerkW 1kW 1
VoltageVolt 220/100Volt 220/100
Air consumptionl/min 80l/min 80
Nr. grippersmax. 12max. 16
Productivity Plant/hour for each gripper 1000 – 1200Plant/hour for each gripper1000 – 1200
pick up tray managementmax. 2 traysmax. 3 trays
Max. tray dimensionscm 40×60cm 40×60
