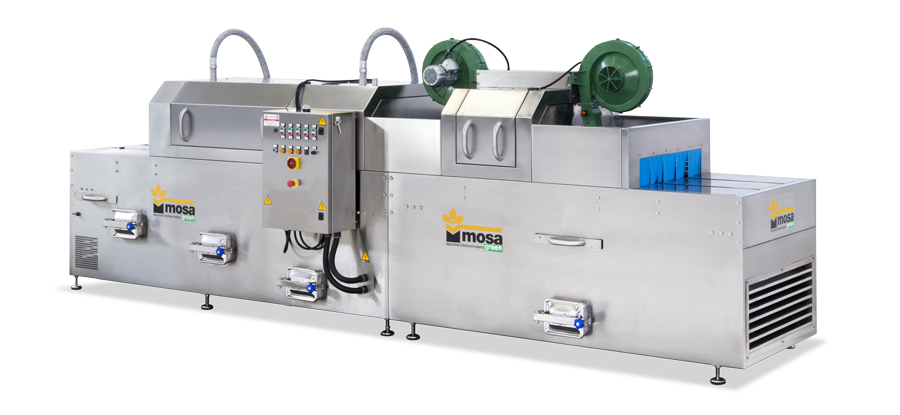

LV16C Tray Washer

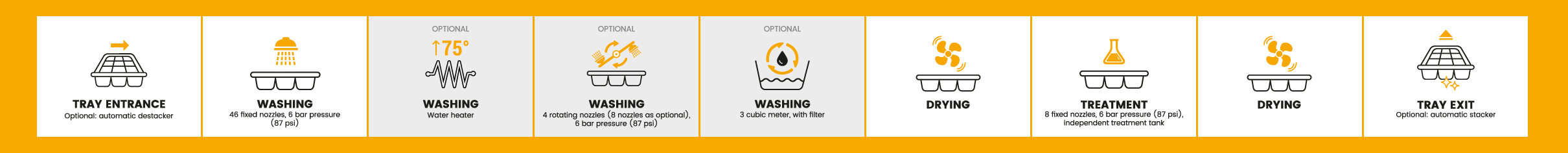

The trays enter horizontally, washing chamber with fixed nozzles, drying fans and sterilizing segment, additional rotating nozzles and external additional filtering tank available as optional in order to ensure clean water during washing phase.

  • Photogallery
  • Videogallery
  • Dimensioni

LV16C Washing machine – TECHNICAL SPECIFICATIONS
Electric power supply (complete with accessories)400 V, 3ph + N + PE, 50 Hz
Water supply4/5 bars
Lenghtmt. 5,1
Widthmt. 1,60
Heightmt. 1,90
Weight2.270 Kg
Working environment temperature+5° +35°
Trayscm max 47 x 70 x 12 (h)
Max output capacity600 containers/hour
Electrical consumption15 kW
