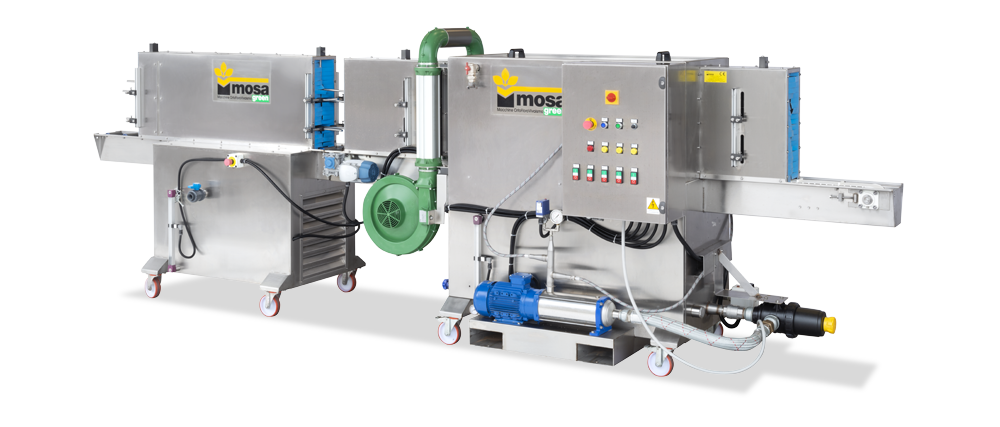

LV16V Tray Washer

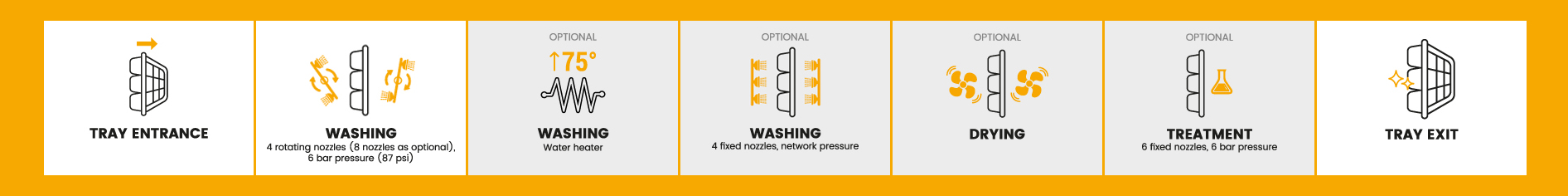

Tray washer, washing chamber with rotating nozzles and sterilizing segment. Trays enter vertically, water heater available as optionals in order to wash with hot water, drying fans available as optional.

  • Photogallery
  • Videogallery
  • Dimensioni

LV16V Washing machine – TECHNICAL SPECIFICATIONS
Electric power supply (complete with accessories)400 V, 3ph + N + PE, 50 Hz
Water supply8/10 bars
Lenghtmt. 4,20
Widthmt. 0,90
Heightmt. 1,30
Trayscm max 47 x 70 x 12 (h)
Max output capacity400 containers/hour
Electrical consumption4 kW (with treatment pump)
